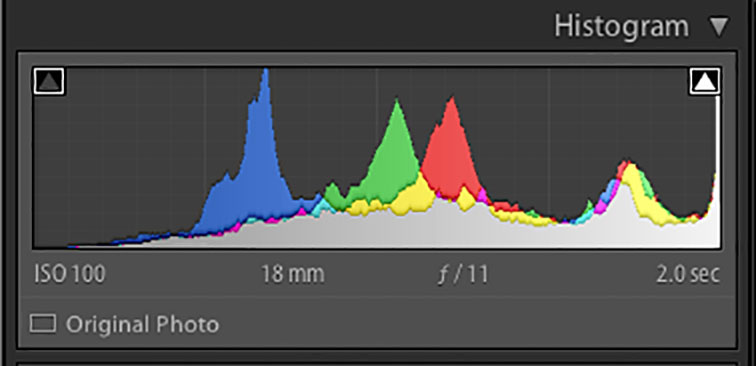

The Histogram panel contains a number of tools to help you evaluate your photo’s exposure and even begin making adjustments. The most visible part of the panel is the histogram itself, which is simply a graphical representation of all of the tones contained in your photo, from the darkest tones on the left to the brightest tones on the right. While there is no such thing as a “good” or “bad” histogram, the histogram can be incredibly instructive when examined alongside your photo. The histogram below shows that the associated photo contains brightness values that span across the entire tonal range, from pure black on the left to pure white on the right.

HistFigure01

Reading the Graph

The colors you see in the graph represent the red, green, and blue color channels. Areas of gray occur where image data from all three channels overlap, while areas of yellow represent overlap of the red and green channels, areas of magenta occur when blue and red overlap, and areas of cyan represent overlap of the green and blue channels.

Here’s a tip, the histogram always reflects the area of the photo inside the crop rectangle, so sometimes it is worth starting your adjustments by cropping out any unwanted areas of highlight or shadow clipping on the edges of the photo. This way the histogram will reflect just the data you are keeping, which will make your job easier when you are performing basic tonal adjustments.

When your cursor is over the photograph you will see the percentages of red, green, and blue contained in the pixels under the cursor displayed below the histogram. When the cursor is not over the photograph you will see exposure information from the photo’s EXIF metadata displayed below the histogram.

Checking for Clipping

Clipping means that there are areas in your photo that contain no image data. This can happen in the shadow region or the highlights or even both at the same time. Clipping on the histogram is represented by spikes along the left or right edges. This histograms is from an over exposed photo that has lost all detail in the highlights.

This histogram shows a spike on the right edge indicating highlight clipping.

This histogram shows a spike on the right edge indicating highlight clipping.

This histogram is from an under exposed photo that has lost all detail in the shadows.

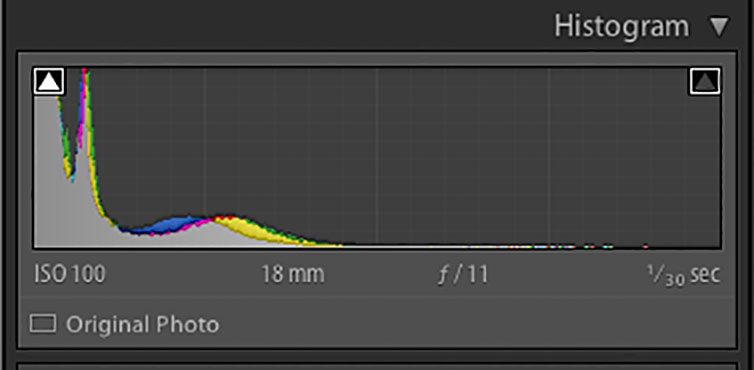

This histogram shows a spike on the left edge indicating shadow clipping.

This histogram shows a spike on the left edge indicating shadow clipping.

The triangles in the upper left (shadow) and right (highlights) corners of the histogram are clipping indicators.

  • When all three channels are being clipped they turn white, but if you see a color in the indicator than only one or two channels are being clipped.
  • You can get a real time view of where this clipping is occurring in your photo by placing your cursor over on an indicator.
  • Click that clipping indicator to keep the clipping preview turned on. Areas in your photo where the shadows are being clipped will turn blue, while areas in your photo where highlights are being clipped will turn red.
  • You can also toggle the clipping indicator preview on and off by pressing the J key. Leaving these indicators enabled while you make tonal adjustments can be very helpful.

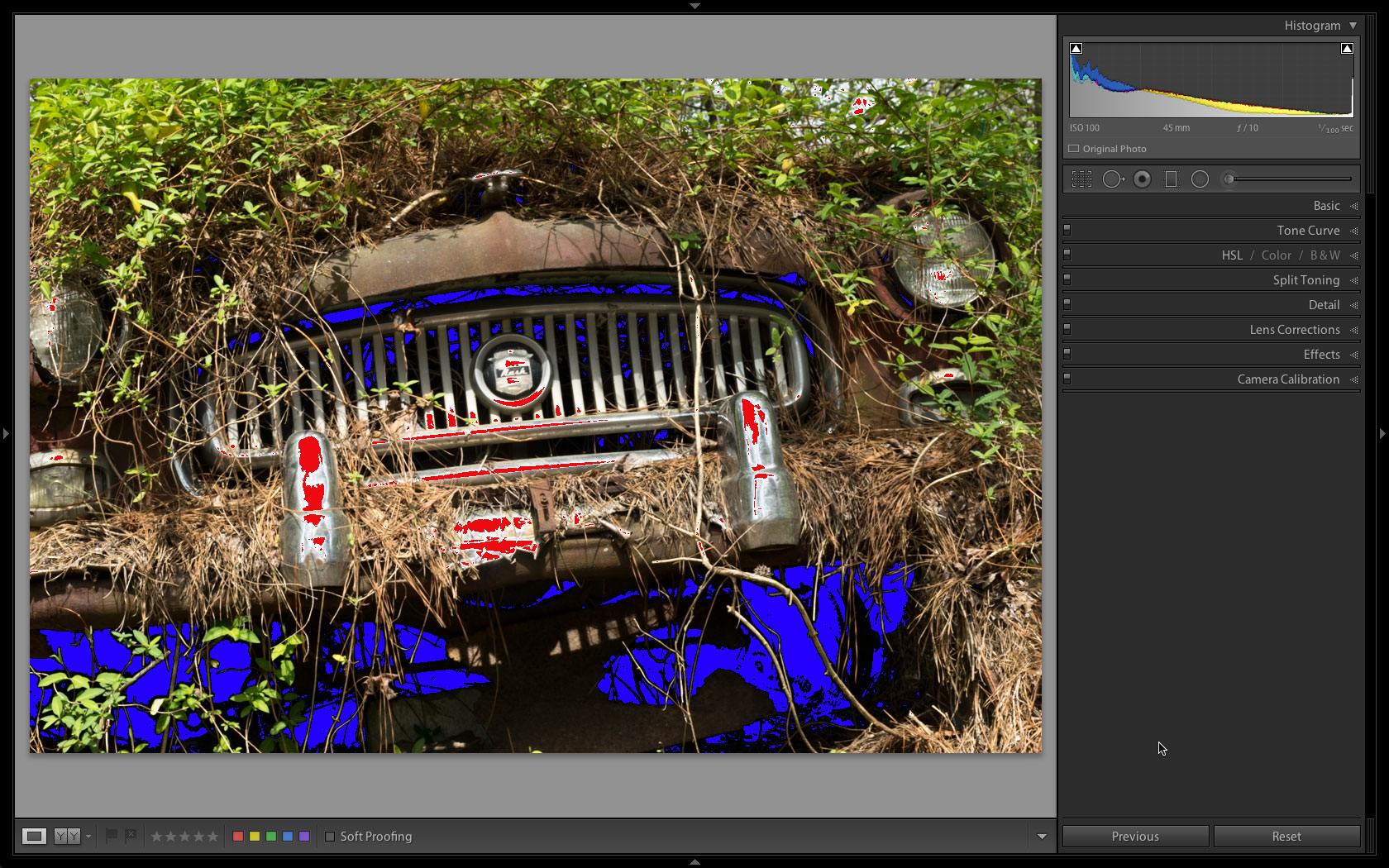

Shadow and highlight clipping indicators are enabled.

Shadow and highlight clipping indicators are enabled.

We’ll continue this series on histograms in a followup post next week.
